Name: China DZL Chain Grate Biomass Wood Boiler Supplier
SKU: China DZL Chain Grate Biomass Wood Boiler Supplier
Availability: InStock

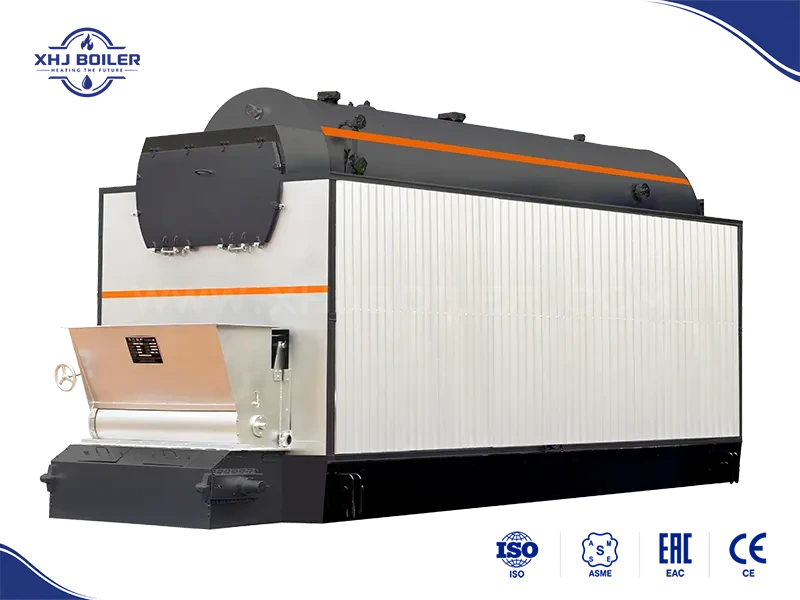

DZL Chain Grate Biomass Boiler

Rated Steam:	1 - 10 ton/h
Rated Hot‑water:	0.7 - 7 MW
Design Pressure:	≤ 2.5 Mpa
Available Fuels:	Wood chip, rice or coffee husk, palm or coconut shell, sugarcane bagasse, biomass pellet, etc.
Manufacturing Standards:	With GB & TSG, ISO, EAC, ASME and CE standard, for export to Asia, Africa, Americas, CIS, etc.
Application Industries:	Widely used in grain‑oil processing, food & beverage, textile printing & dyeing, rubber, paper‑making, wood processing, feed, chemical, pharmaceutical, building material and heating.
Technological Advantages:	Wide fuel adaptability, no coking, easy maintenance, light‑weight and low shipping cost.

Get Price

Email: [email protected]

Product Introduction

DZL series fire‑water tube biomass boiler features compact structure, reliable performance and has won multiple patents. Supporting a wide range of low‑cost fuels, it delivers low‑emission combustion with high economic benefits.

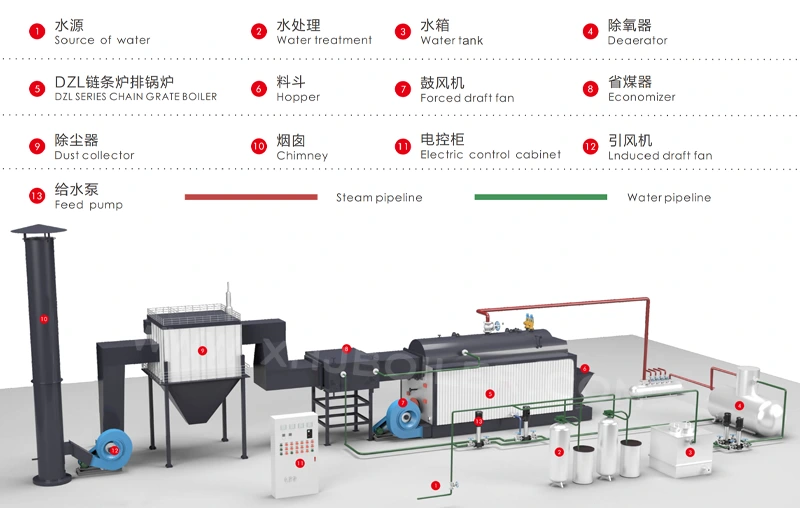

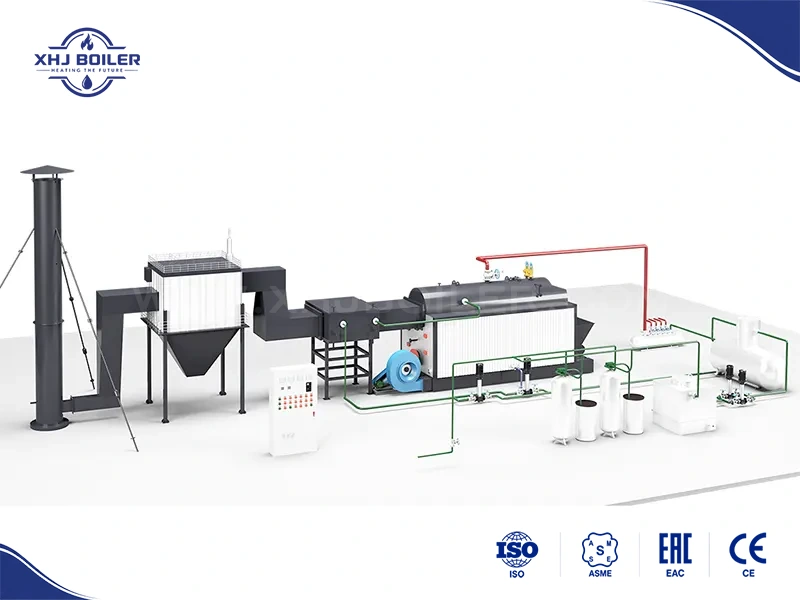

DZL Chain Grate Biomass Boiler System

Core Advantages

a. Inverted α furnace arch: Prolongs fuel combustion time for higher heat‑transfer efficiency, and supports combustion of various biomass fuels and low‑calorific‑value coal.

b. Advanced structure design: Optimized grate side sealing prevents jamming and burnout.

c. Flexible adjustment wind: New screw‑type air‑regulating structure realize 100% ventilation adjustment, easy operation and uniform air distribution.

d. Light‑weight and compact: Small overall dimension with 10‑20 ton weight, effectively reducing transportation cost.
Biomass Boiler Fuels

Specifications

Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	Feed temperature(℃)	Thermal efficiency(%)	Boiler water volume(m³)	Exhaust temperature(℃)	Fuel consumption（Kg/h）	Max transportation weight(t)
Model	Rated capacity(t/h)	Rated pressure (Mpa)	Rated steam temperature(℃)	Feed temperature(℃)	Thermal efficiency(%)
DZL1	1	≤4.5Mpa	≤450℃	20/104℃	＞82	3.15	113.34	190.42	13.5
DZL2	2					4.77	106.34	393.77	22
DZL4	4					8.2	124.49	756.89	27.6
DZL6	6					8.1	137.29	1148.68	35
DZL8	8					9.6	141.06	1602.44	38
DZH1	1					3.15	127.25	192.32	9
DZH2	2					4.75	126.41	386.47	15
DZH4	4					7.7	137.25	782.29	18.5
DZH6	6					7.4	146.83	1169.57	25

Notes: * The above parameters are for reference only, subject to actual product specifications.
