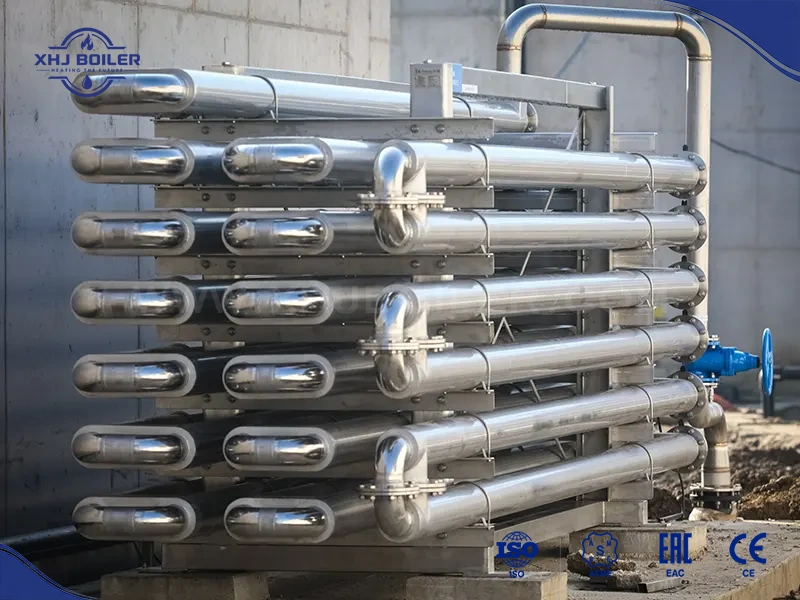

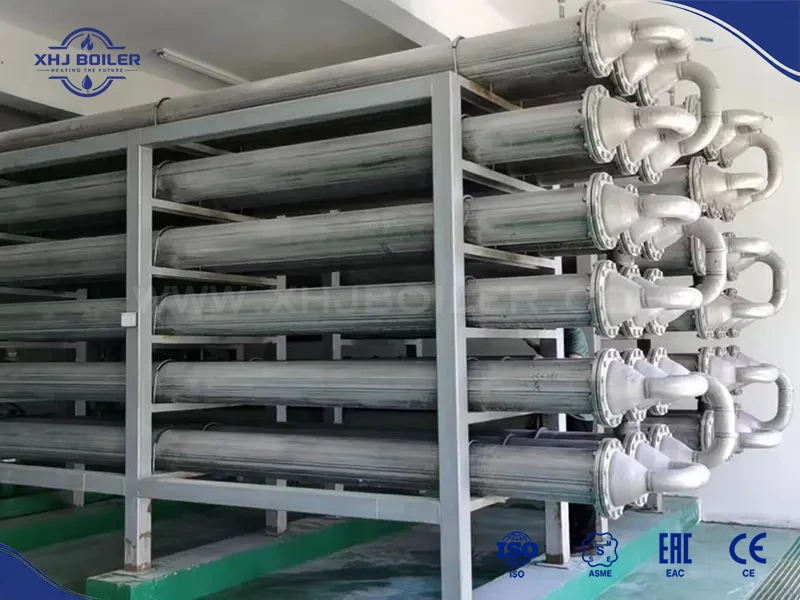

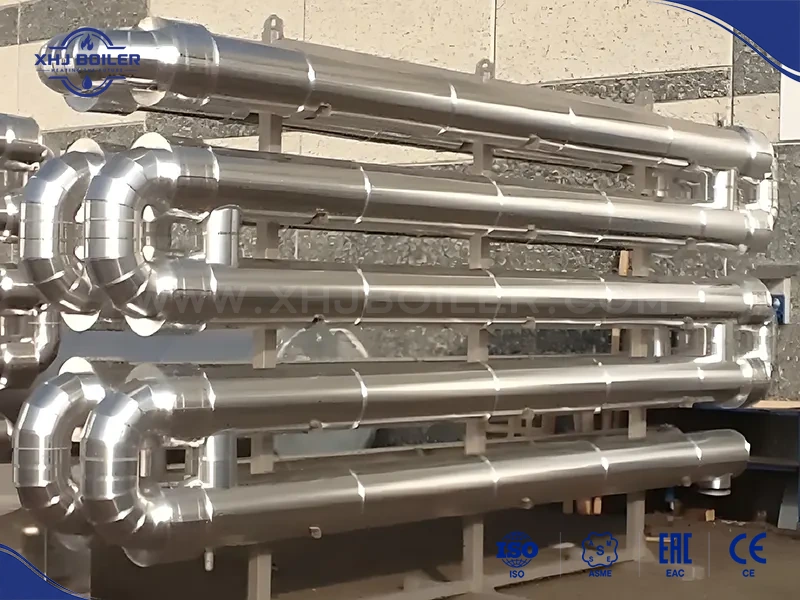

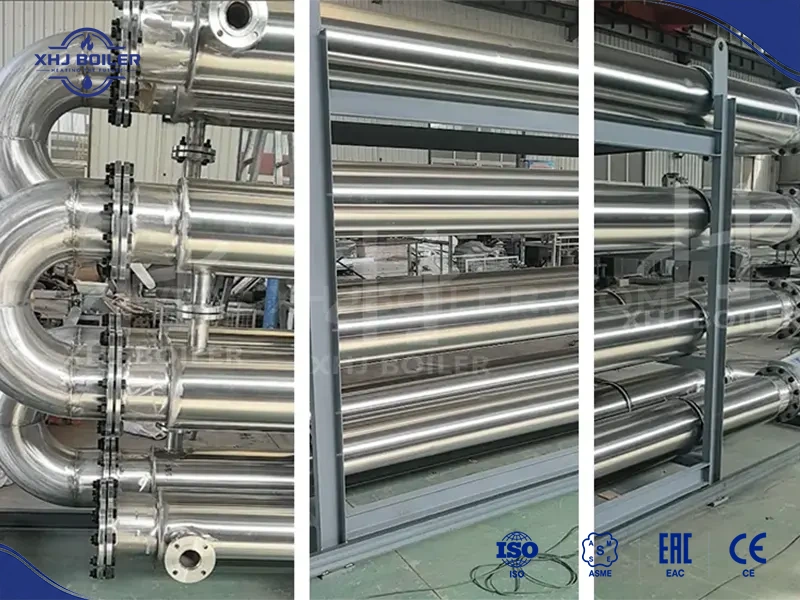

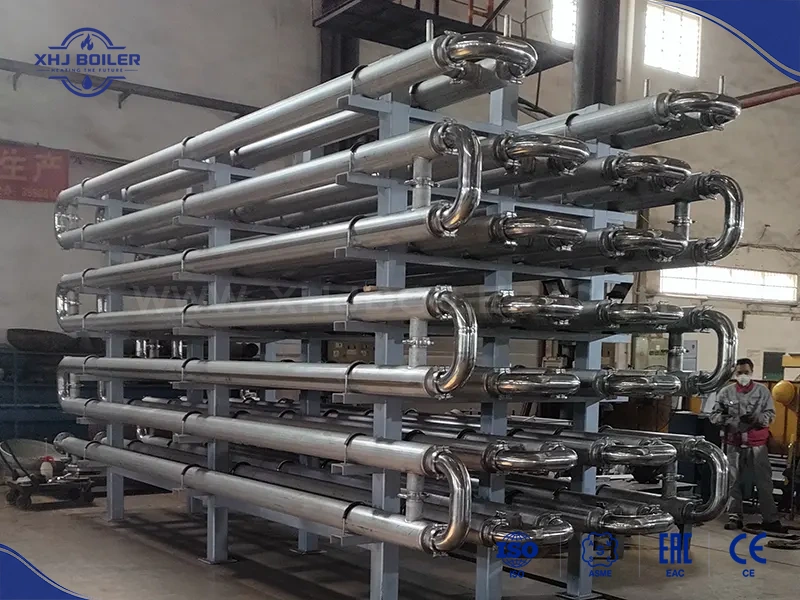

Tube-in-Tube Heat Exchanger

Tube-in-Tube heat exchangers are a type of concentric tubes design, commonlyused in wastewater treatment plants, food processing plants, and the textile and dyeing industry.

In wastewater treatment, the inner tube serves as a sludge/sewage channel, while the outer tube is a water-side channel, making it a counter-current heat exchanger. The unidirectional concentric tube design is suitable for heating sludge and organic waste during anaerobic digestion. Large inner tubes with a diameter of 80-150 mm are used to prevent clogging.

Its advantages are reflected in its applicable industries:

a. Wastewater and sludge heating.

b. Wastewater cooling.

c. Heating and cooling of seasonings, fruit purees, and fruit pulp.

d. Heat recovery from dyeing and printing wastewater.

e. Heating of milk, cream, and juice.
