| Rated Steam: | 6 - 30 ton/h |
| Rated Hot‑water: | 4.2 - 21 MW |
| Design Pressure: | ≤ 3.82 Mpa |
| Available Fuels: | Bituminous coal, anthracite, lignite, coal fines, coal gangue, biomass mixed fuels. |
| Manufacturing Standards: | With GB & TSG, ISO, EAC, ASME and CE standard, for export to Asia, Africa, etc. |
| Application Industries: | Food, textile, chemical, pharmaceutical, paper, building materials, rubber, feed processing, etc. |

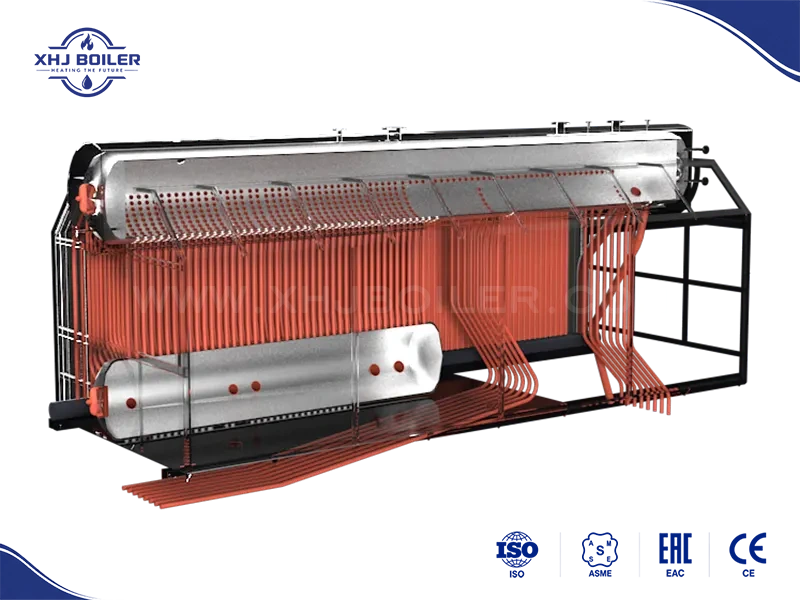

| Technological Advantages: | Water cooling wall structure, Inverted α furnace arch design, strong overload capacity. |
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperature(℃) | Fuel consumption（Kg/h） | max transportation weigh(t) |
| SZL2 | 2 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞83.13 | 6.76 | 130.7 | 385.8 | 22 |
| SZL4 | 4 | ＞84.23 | 5.1 | 142 | 807 | 29 | |||
| SZL6 | 6 | ＞84.81 | 8.4 | 142 | 1209 | 34 | |||
| SZL8 | 8 | ＞85.02 | 9.4 | 149.1 | 1563.9 | 40.5 | |||
| SZL10 | 10 | ＞86.2 | 8.35 | 152.7 | 2149.3 | 24 | |||
| SZL12 | 12 | ＞86.56 | 12.8 | 148.7 | 2399.7 | 37 | |||
| SZL15 | 15 | ＞86.29 | 15.2 | 149.8 | 2568.4 | 24.7 | |||
| SZL20 | 20 | ＞86.8 | 15.5 | 147.4 | 4266.9 | 26 |
Notes: * The above parameters are for reference only, subject to actual product specifications.
