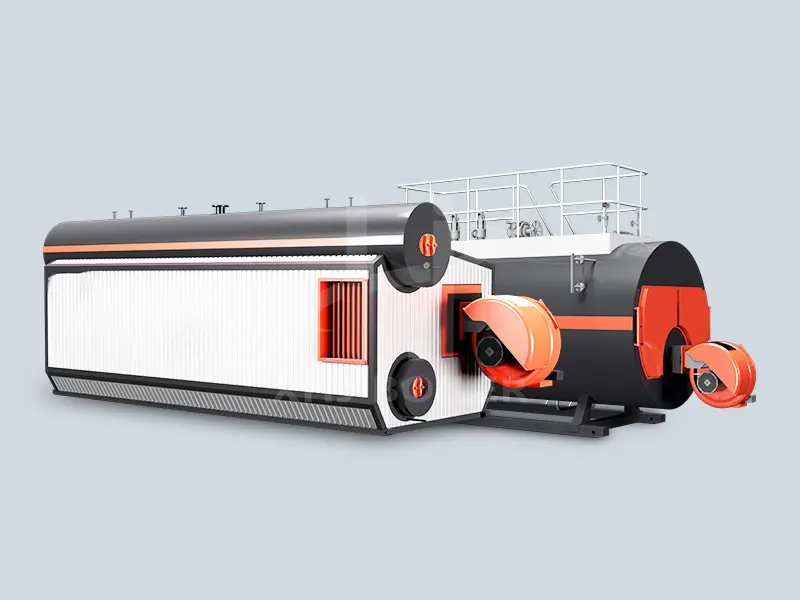

What is difference between water tube and fire tube boiler?
- Date: 2026-06-25
- Views:
Each boiler type has its own pros and cons for factory selection. Watertube boilers are safer by design and generally considered to last much longer than the firetube boiler. They are available in muc......
Fire Tube and Water Tube Boiler Contrast
Many industrial workers often confuse these two boiler types in daily work.
The difference between water tube and fire tube boiler brief contrast:
1. Fire tube boiler is hot flue gas passes through tubes; water surrounds the tubes. Low pressure & small capacity.
2. Water tube boiler is water flows inside tubes; hot gas heats the outside. High pressure & large capacity.
These structural differences decide their different application scenarios. Watertube boiler and firetube boilers are essentially the opposite in design. In a watertube boiler, water travels through tubes which are surrounded by the by-products of combustion, or flue gas. In a firetube boiler, the flue gas travels through the tubes, which are surrounded by hot water. Firetube boilers are typically designed with either three or four sets of tubes (three- or four-pass boilers). Every set of tubes that the flue gas travels through is considered a "pass". Boilers designed for three-passes have the stack at the rear, and boilers designed for four-passes have the stack at the front. A boiler with more passes has a higher heat extraction rate and is more efficient then one with less passes.
Each boiler type has its own pros and cons for factory selection. Watertube boilers are safer by design and generally considered to last much longer than the firetube boiler. They are available in much larger sizes and recover faster than firetube boilers, can handle pressures up to 5000 psig, and have the ability to reach very high temperatures with the use of superheaters. Because of their inherent design, firetube boilers are not suitable for pressures above 350 psig. Also, the steam output is less than the nameplate at actual operating conditions. Watertube boilers are rated at actual operating conditions.
However, from a manufacturing standpoint, firetube boilers are typically lower in cost than a comparable sized watertube boiler, the firesides are easier to clean, and the straight firetubes are easily replaceable. Choosing the right boiler model can save lot of operating cost for the plant.
Many industrial workers often confuse these two boiler types in daily work.
The difference between water tube and fire tube boiler brief contrast:
1. Fire tube boiler is hot flue gas passes through tubes; water surrounds the tubes. Low pressure & small capacity.
2. Water tube boiler is water flows inside tubes; hot gas heats the outside. High pressure & large capacity.
These structural differences decide their different application scenarios. Watertube boiler and firetube boilers are essentially the opposite in design. In a watertube boiler, water travels through tubes which are surrounded by the by-products of combustion, or flue gas. In a firetube boiler, the flue gas travels through the tubes, which are surrounded by hot water. Firetube boilers are typically designed with either three or four sets of tubes (three- or four-pass boilers). Every set of tubes that the flue gas travels through is considered a "pass". Boilers designed for three-passes have the stack at the rear, and boilers designed for four-passes have the stack at the front. A boiler with more passes has a higher heat extraction rate and is more efficient then one with less passes.
Each boiler type has its own pros and cons for factory selection. Watertube boilers are safer by design and generally considered to last much longer than the firetube boiler. They are available in much larger sizes and recover faster than firetube boilers, can handle pressures up to 5000 psig, and have the ability to reach very high temperatures with the use of superheaters. Because of their inherent design, firetube boilers are not suitable for pressures above 350 psig. Also, the steam output is less than the nameplate at actual operating conditions. Watertube boilers are rated at actual operating conditions.
However, from a manufacturing standpoint, firetube boilers are typically lower in cost than a comparable sized watertube boiler, the firesides are easier to clean, and the straight firetubes are easily replaceable. Choosing the right boiler model can save lot of operating cost for the plant.
