| Rated Steam: | 0.5-20 t/h |
| Rated Hot‑water: | 0.35-14 MW |
| Design Pressure: | ≤ 2.5Mpa |
| Available Fuels: | Natural Gas, LNG, LPG, Oil, Diesel, Dual-fuel, etc. |
| Manufacturing Standards: | With GB & TSG, ISO, EAC, ASME and CE standard, for export to Asia, Africa, Americas, CIS, etc. |
| Application Industries: | Textile plant, Heating Supply, Hotel, Food & Beverage, Water Treatment, Greenhouse, Garment Manufacturing, etc. |

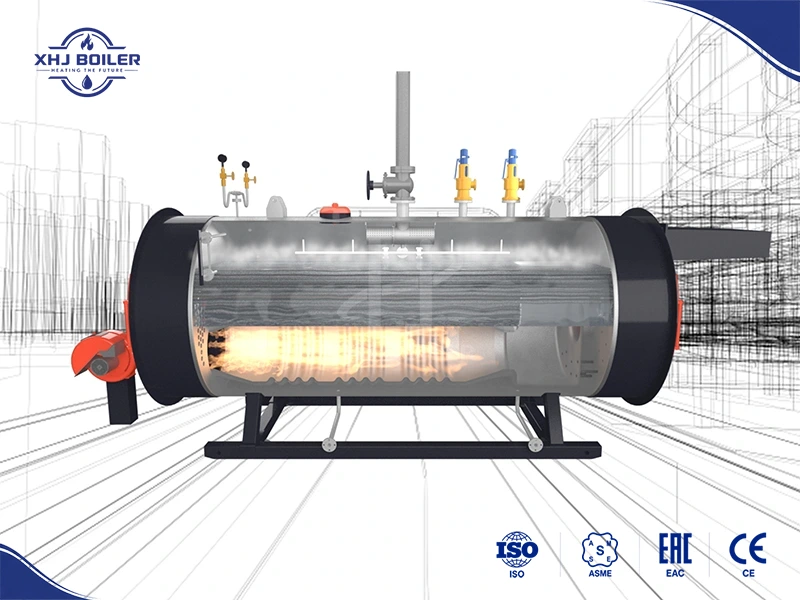

| Technological Advantages: | Horizontal fire-tube design with over 98% thermal efficiency. Compact, reliable, easy to maintain, and fully automatic, especially with dual-fuel support for oil and gas. |
| Model | Capacity | Pressure(MPa) | Rated steam temperature(℃) | Feed Water Temperature(℃) | Thermal Efficiency | Shipping Weight(t) | Shipping Dimension(LxWxH)(mm) | |
| t/h | BHP | |||||||
| WNS1 | 1 | 77 | 1.0 1.25 1.6 |
184 194 204 |
20 | ≥ 95% | 4.8 | 3900*1800*2100 |
| WNS2 | 2 | 2681 | 20 | 7.8 | 3900*2100*2300 | |||
| WNS3 | 3 | 2681 | 20 | 9.1 | 4600*2200*2400 | |||
| WNS4 | 4 | 2681 | 20 | 11 | 4600*2300*2400 | |||
| WNS5 | 5 | 2681 | 20 | 12.9 | 5000*2300*2400 | |||
| WNS6 | 6 | 3064 | 20 | 15.5 | 5500*2400*2700 | |||
| WNS8 | 8 | 3447 | 20 | 18.5 | 5700*2650*3000 | |||
| WNS10 | 50 | 3830 | 104 | 23 | 6300*2800*3250 | |||
| WNS15 | 65 | 4979 | 104 | 29.5 | 7650*3250*3700 | |||
| WNS20 | 75 | 5745 | 104 | 42 | 9300*3300*3850 | |||
| Model | Capacity(MW) | Pressure(MPa) | Outlet Water Temperature(℃) | Inlet Water Temperature(℃) | Thermal Efficiency | Shipping Weight(t) | Shipping Dimension(LxWxH)(mm) |
| WNS0.7 | 0.7 | 1.0 | 95 | 70 | ≥ 95% | 4.2 | 3900*1800*2100 |
| WNS1.4 | 1.4 | 6.5 | 3900*2100*2300 | ||||
| WNS2.1 | 2.1 | 7.9 | 4600*2200*2400 | ||||
| WNS2.8 | 2.8 | 9.8 | 4600*2300*2400 | ||||
| WNS3.5 | 3.5 | 11.5 | 5000*2300*2400 | ||||
| WNS4.2 | 4.2 | 14.6 | 5500*2400*2700 | ||||
| WNS5.6 | 5.6 | 15.5 | 5700*2650*3000 | ||||
| WNS7 | 7 | 23 | 6300*2800*3250 | ||||
| WNS10.5 | 10.5 | 30 | 7650*3250*3700 | ||||
| WNS14 | 14 | 40 | 9300*3300*3850 |
Notes: * The above parameters are for reference only, subject to actual product specifications.
R&D Center
Fully Automatic Welding
Fully Automatic Tube
Steel Plate Rolling
Tube Bending
CNC Cutting
Large Vertical Lathe
Quenching Treatment
X-ray Flaw Detection
SAPPI
GAZPROM
ADNOC
COCACOLA
CDPC
SINOPEC
CNPC
CHN ENERGY
BYD
CP FOOD
Factory Direct Supply
XHJ Boiler specializes in the R&D, production and sales of boilers, pressure vessels, heat exchange equipment and other related products. Supply customers with one-stop boiler and pressure vessel solutions and have won extensive recognition and positive reviews globally.
XHJ BOILER recommends WNS Fire-Tube Horizontal Type Oil/Gas Fired Boiler Manufacturer to help you understand product manufacturing process, equipment features, and other details. Please visit www.xhjboiler.com and view related application cases, blog updates, and all products.
