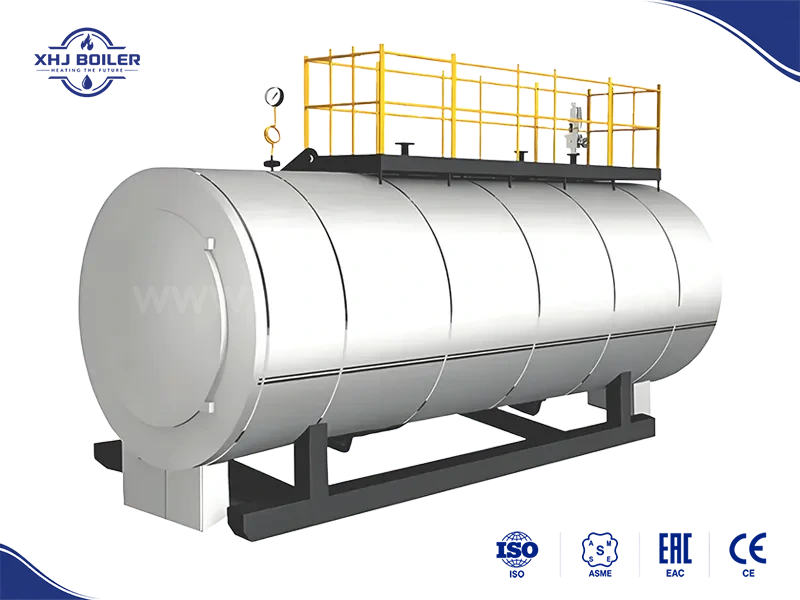

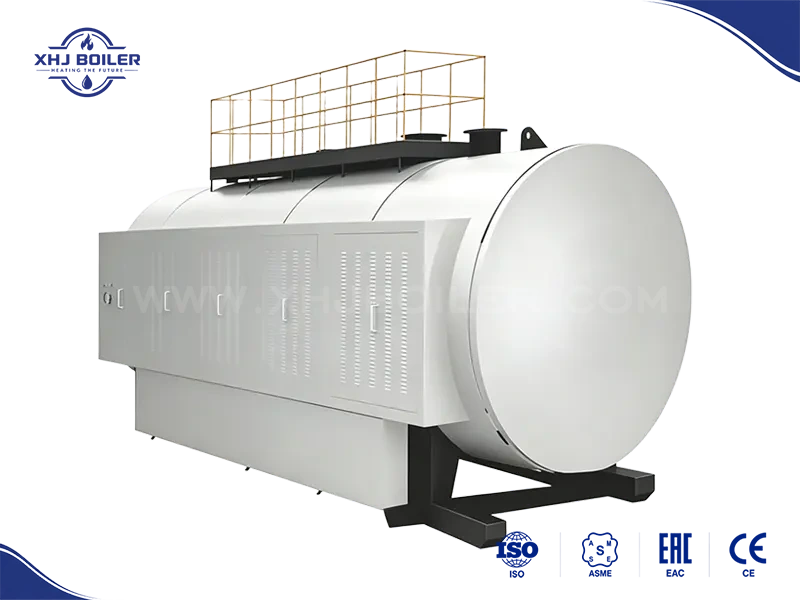

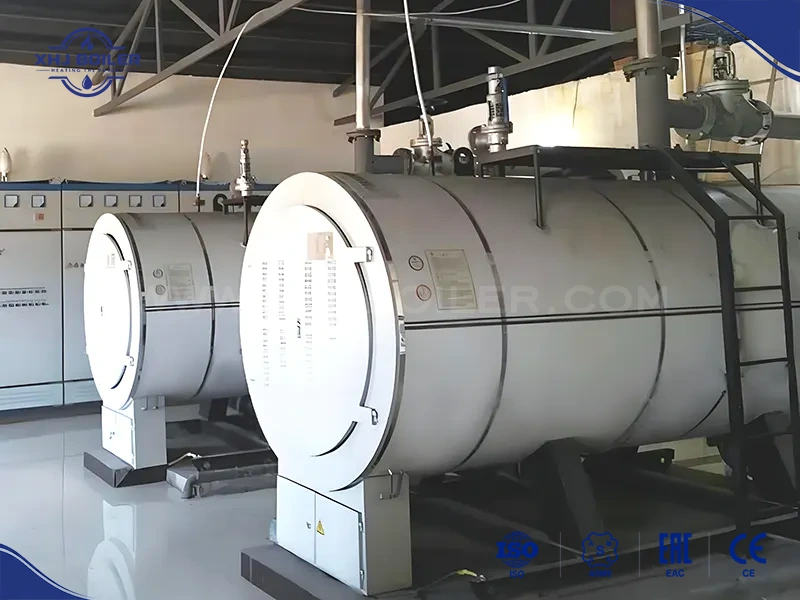

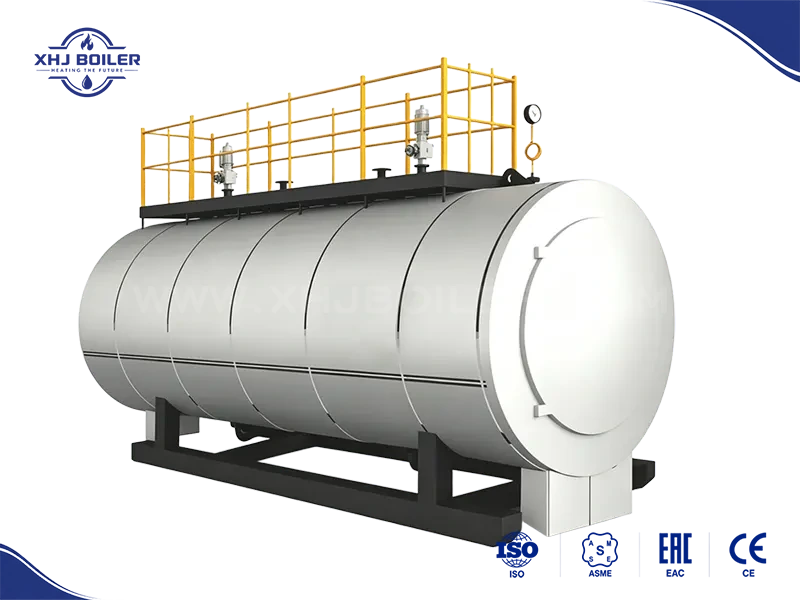

Name: Electric Pressure and Atmospheric Hot Water Boiler
SKU: Electric Pressure and Atmospheric Hot Water Boiler
Availability: InStock

Electric Hot Water Boiler

Rated Hot‑water:	0.35 - 8 MW
Design Pressure:	1.0 Mpa or Atmospheric pressure
Structure Type:	Vertical and Horizontal
Boiler Models:	LDR, CLDR, WDR, CWDR
Thermal Efficiency:	98 - 99%
Application Industries:	Atmospheric & pressurized electric hot‑water boilers apply to building heating, sanitary hot‑water and industrial process hot‑water systems.
Technological Advantages:	Safe non‑pressure option, multi‑protections, fast heating & high efficiency, adjustable water temperature.

Get Price

Email: [email protected]

Product Introduction

This series covers vertical & horizontal, atmospheric and pressure hot water boilers. Fitted with Incoloy 800 nickel‑based alloy heating tubes. Atmospheric model uses top atmospheric vent for atmospheric‑pressure running. It realizes full‑auto operation, 7‑day timing (3 periods/day), adjustable water temperature, integrated control of circulation and makeup water pumps.

Core Advantages

Atmospheric boiler: non‑pressurized, no explosion risk, no formal‑use procedures required.

Comprehensive multi‑safety protection.

Pressure boiler: fast heating, low heat loss, high thermal efficiency.

Timing function & freely set outlet water temperature.

Specifications

Horizontal Atmospheric Boiler

Item/Model	Rated thermal power(10⁴kcal/h)	Rated thermal power(MW)	Electric power(kW)	Rated pressure(MPa)	Rated supply and return water temperature(℃)	Effective water volume(m³)	Heating area(m²)	Hot water output(m³/h Δt=25℃)	Circulating water volume(m³/h)	Power supply(V/Hz)	Current(A)	Thermal efficiency(%)	Supply and return water inlet(mm)	Atmospheric vent(mm)	Discharge outlet(mm)	Overall dimensions‑L(mm)	Overall dimensions‑W(mm)	Overall dimensions‑H(mm)	Control cabinet dimensions‑L(mm)	Control cabinet dimensions‑W(mm)	Control cabinet dimensions‑H(mm)	Weight(kg)
CWDR0.5‑85/70	43	0.5	510	0	85/70	0.72	5357	17.1	28.7	380/50	774	98‑99%	DN80	DN65	DN80	2095	1300	1800				523
CWDR0.7‑85/70	60	0.7	720	0	85/70	1.19	7500	24	40	380/50	1094	98‑99%	DN80	DN80	DN80	2095	1470	1800				780
CWDR1.05‑85/70	90	1.05	1080	0	85/70	1.72	11250	36	60	380/50	1641	98‑99%	DN100	DN100	DN100	2295	1250	2190	2000	600	2200	1120
CWDR1.4‑85/70	120	1.4	1440	0	85/70	2.16	15000	48	80	380/50	2188	98‑99%	DN125	DN125	DN125	2245	1500	2400	2400	600	2200	1583
CWDR1.75‑85/70	150	1.75	1800	0	85/70	2.5	18750	60	100	380/50	2735	98‑99%	DN150	DN150	DN150	2245	1520	2530	3600	600	2200	1733
CWDR2.1‑85/70	180	2.1	2160	0	85/70	3.5	22500	72	120	380/50	3282	98‑99%	DN150	DN150	DN150	2600	1750	2650	3600	600	2200	2090
CWDR2.8‑85/70	240	2.8	2880	0	85/70	6.6	30000	96	160	380/50	4376	98‑99%	DN200	DN200	DN200	3600	2090	3530	4800	600	2200	3670
CWDR1‑85/70	86	1	1020	0	85/70	1.7	10714	34	57	380/50	1514	98‑99%	DN125	DN125	DN125	2224	1250	1866	2000	600	2200	1220
CWDR2‑85/70	172	2	2040	0	85/70	3.0	21429	68	114	380/50	3028	98‑99%	DN150	DN150	DN150	2298	1700	2216	4800	600	2200	2563
CWDR3‑85/70	257	3	3000	0	85/70	6.6	32143	102	171	380/50	4543	98‑99%	DN200	DN200	DN200	3478	1900	2486	4800	600	2200	3712
CWDR4‑85/70	343	4	4020	0	85/70	9.6	42857	137	228	380/50	6107	98‑99%	DN200	DN200	DN200	4000	2300	2540	4800	600	2200	5096
CWDR5‑85/70	429	5	5040	0	85/70	10.8	53571	171	286	380/50	7600	98‑99%	DN200	DN200	DN200	4820	2300	2550	4800	600	2200	5661
CWDR6‑85/70	514	6	6000	0	85/70	13.8	64286	206	343	380/50	9116	98‑99%	DN250	DN250	DN250	4620	2500	2740	4800	600	2200	6436
CWDR7‑85/70	600	7	7020	0	85/70	15.4	75000	240	400	380/50	10636	98‑99%	DN250	DN250	DN250	5120	2500	2740	4800	600	2200	7617
CWDR8‑85/70	686	8	8040	0	85/70	18.4	85714	274	457	380/50	12155	98‑99%	DN250	DN250	DN250	6120	2500	2740	4800	600	2200	8815

Horizontal Pressurized Boiler

Item/Model	Rated thermal power(10⁴kcal/h)	Rated thermal power(MW)	Electric power(kW)	Rated pressure(MPa)	Rated supply and return water temperature(℃)	Effective water volume(m³)	Heating area(m²)	Hot water output(m³/h Δt=25℃)	Circulating water volume(m³/h)	Power supply(V/Hz)	Current(A)	Thermal efficiency(%)	Supply and return water inlet(mm)	Atmospheric vent(mm)	Discharge outlet(mm)	Overall dimensions of boiler body‑L(mm)	Overall dimensions of boiler body‑W(mm)	Overall dimensions of boiler body‑H(mm)	Dimensions of the electrical control cabinet‑L(mm)	Dimensions of the electrical control cabinet‑W(mm)	Dimensions of the electrical control cabinet‑H(mm)	Weight(kg)
WDR0.7‑1.0/95/70	60	0.7	720	1	95/70	2.1	7500	24	24	380/50	1125	98%‑99%	DN65	/	DN40	3015	1690	2100				1190
WDR1.05‑1.0/95/70	90	1.05	1080	1	95/70	2.75	11250	36	36	380/50	1584	98%‑99%	DN100	/	DN50	3375	1495	2005	2000	600	2200	1771
WDR1.4‑1.0/95/70	120	1.4	1440	1	95/70	3.29	15000	48	48	380/50	2127	98%‑99%	DN100	/	DN50	3230	1500	1970	2400	600	2200	1996
WDR1.75‑1.0/95/70	150	1.75	1860	1	95/70	4.9	18750	60	60	380/50	2790	98%‑99%	DN150	/	DN50	3370	1720	2200	3600	600	2200	2734
WDR2.1‑1.0/95/70	180	2.1	2220	1	95/70	5.52	22500	72	72	380/50	3191	98%‑99%	DN150	/	DN50	3800	1900	2370	3600	600	2200	3966
WDR2.8‑1.0/95/70	240	2.8	3000	1	95/70	7.58	30000	96	96	380/50	4225	98%‑99%	DN200	/	DN50	3860	2000	3535	4800	600	2200	4299

Notes: * The above parameters are for reference only, subject to actual product specifications.
