Name: High-Power Electrode Boiler for Steam & Hot Water
SKU: High-Power Electrode Boiler for Steam & Hot Water
Availability: InStock

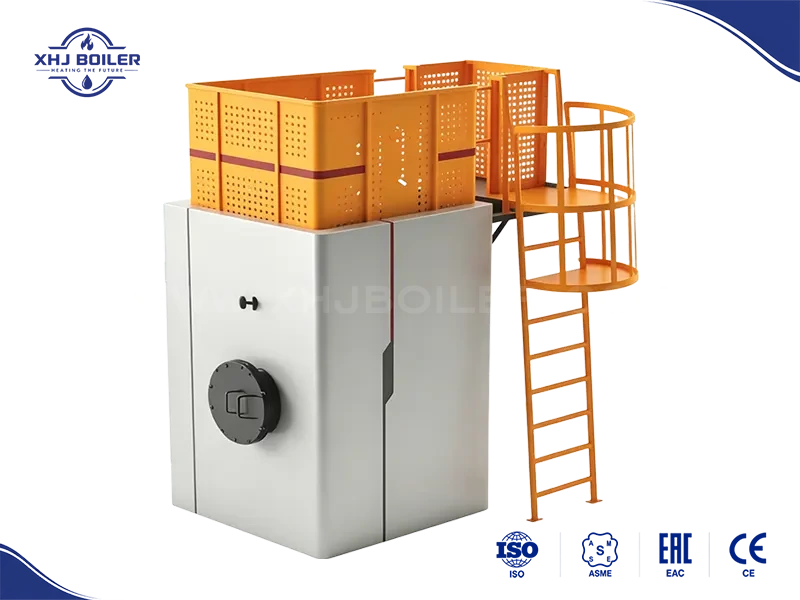

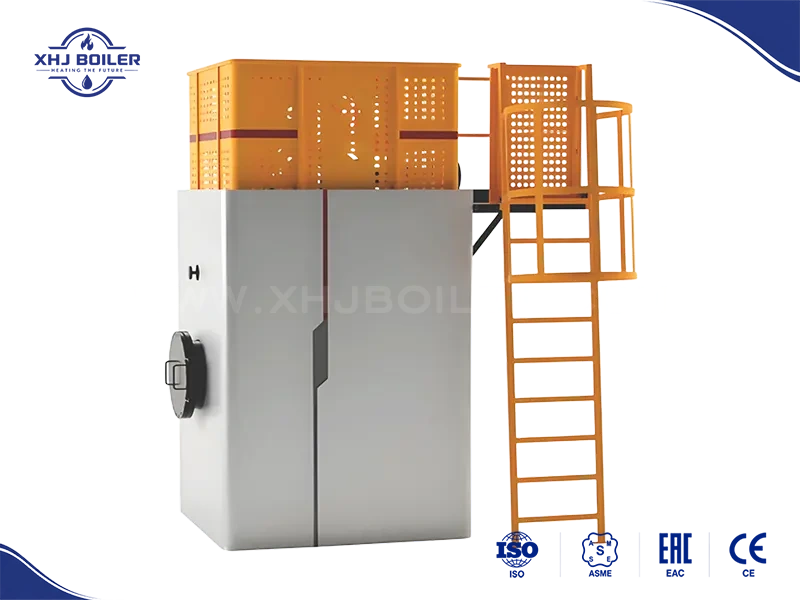

High-Power Electrode Boiler

Rated Steam:	4 - 90 ton/h
Rated Hot‑water:	1.4 - 42 MW
Design Pressure:	≤ 6.3 Mpa
Voltage:	6 - 22 KV
Thermal Efficiency:	99%
Application Industries:	Widely to district heating, power‑grid peak‑valley regulation, new‑energy heat storage, industrial heating, public buildings, clean‑energy retrofit and emergency heat‑supply.
Technological Advantages:	Intelligent unattended operation, wide load regulation, off‑peak heat‑storage, compact structure, easy installation.

Get Price

Email: [email protected]

Product Introduction

High-power electrode boilers include two types: electrode steam boiler and electrode hot water boiler.

The high‑voltage electrode boiler series immerses high‑voltage electrodes (6‑25 kV) into conductive water. Leveraging water’s conductivity and thermal‑resistance properties, it directly converts electric energy into thermal energy at efficiency above 99%.

Core Advantages

- Ultra‑high Efficiency: 99% energy conversion, zero pollution & noise‑free.

- Peak‑valley Shaving: Off‑peak heat‑storage mode for automatic grid peak‑load adjustment.

- Compact Structure: Small footprint, light weight, ample output & high safety.

- Unattended Operation: Fully‑automatic on‑demand heating, no staff on duty required.

- Cost‑effective Deployment: Easy installation, simple foundation, low investment & easy maintenance.

Specifications

Electrode Steam Boiler

Model	Power (MW)	Rated evaporation capacity (t/h)	Design pressure (MPa)	Voltage (KV)	Control range	Maximum adjustment time (min)	Efficiency	Maximum conductivity for water replenishment (μs/cm)	Boiler body height (mm)	Boiler body diameter (mm)	Shipping weight (t)	Operating weight (t)
LDJ4	2.8	4	1.0~6.3	6~22	10~100%	5	>99%	<5	6400	2400	6.5	9.8
LDJ6	4.2	6	1.0~6.3	6~22	10~100%	5	>99%	<5	6400	2400	6.5	9.8
LDJ8	5.6	8	1.0~6.3	6~22	10~100%	5	>99%	<5	6400	2400	6.5	9.8
LDJ10	7	10	1.0~6.3	6~22	10~100%	5	>99%	<5	6400	2400	6.5	9.8
LDJ15	10.5	15	1.0~6.3	6~22	10~100%	5	>99%	<5	6400	2400	6.5	9.8
LDJ20	14	20	1.0~6.3	6~22	10~100%	5	>99%	<5	6400	2400	6.5	9.8
LDJ25	17.5	25	1.0~6.3	6~22	10~100%	5	>99%	<5	6540	2900	11	16
LDJ30	21	30	1.0~6.3	6~22	10~100%	5	>99%	<5	6540	2900	11	16
LDJ40	28	40	1.0~6.3	6~22	10~100%	5	>99%	<5	6800	3100	15	22
LDJ50	35	50	1.0~6.3	6~22	10~100%	5	>99%	<5	6800	3100	15	22
LDJ60	42	60	1.0~6.3	6~22	10~100%	5	>99%	<5	6800	3100	15	22
LDJ70	49	70	1.0~6.3	6~22	10~100%	5	>99%	<5	8400	3600	24	35
LDJ80	56	80	1.0~6.3	6~22	10~100%	5	>99%	<5	8400	3600	24	35
LDJ90	63	90	1.0~6.3	6~22	10~100%	5	>99%	<5	8900	4000	32	45

Electrode Hot Water Boiler

Model	Rated thermal power(MW)	Rated supply and return water temperature(℃)	Design pressure(MPa)	Voltage(KV)	Control range	Efficiency	Overall length(mm)	Overall width(mm)	Overall height(mm)	Shipping weight(t)	Operating weight(t)
LDJ1.4	1.4	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	1780	1620	3570	2.3	4.6
LDJ2.1	2.1	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	1780	1620	3570	2.65	4.95
LDJ2.8	2.8	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	1780	1620	3570	2.8	5.1
LDJ4.2	4.2	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	1900	2250	3650	2.94	5.24
LDJ5.6	5.6	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	1900	2250	4150	4.7	8
LDJ7	7	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	2400	2800	4200	6	10
LDJ10.5	10.5	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	2400	2800	4200	10	14
LDJ14	14	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	2400	2800	4200	11	17
LDJ21	21	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	2900	2850	4350	12	24
LDJ28	28	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	3000	4100	5900	13	33
LDJ35	35	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	3000	4650	6450	20	40
LDJ42	42	150/70 130/70 115/70 95/70	1.0~2.5	6~22	10~100%	99%	3200	4800	6600	25	45

Notes: * The above parameters are for reference only, subject to actual product specifications.
