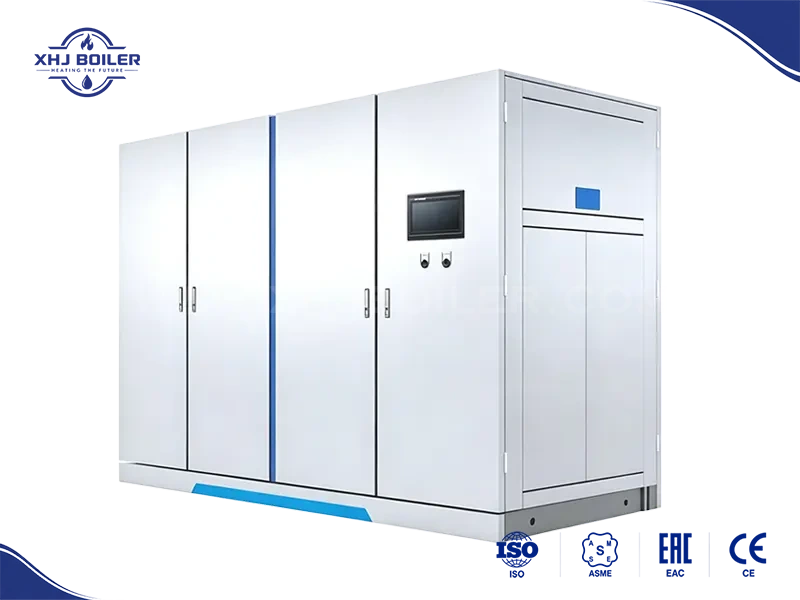

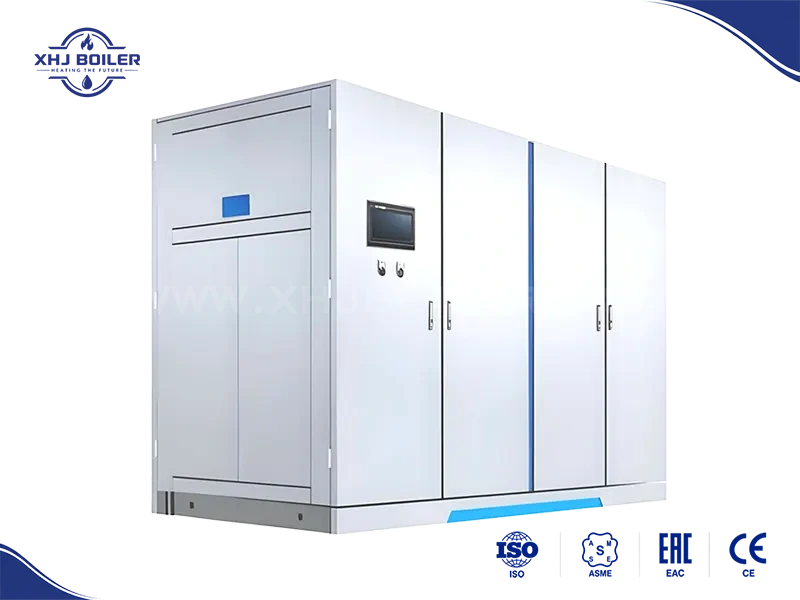

Welcome to XHJ Boiler - China Leading Boiler Manufacturer
| Rated Hot‑water: | 0.35 - 2.8 MW |
| Rated Heat: | 30-240 × 10⁴ kcal/h |
| Thermal Efficiency: | 98 - 99% |
| Design Pressure: | -0.02 MPa |
| Application Industries: | Widely used for central heating and sanitary hot‑water supply in hotels, hospitals, schools and commercial buildings. |
| Technological Advantages: | Noise‑free zero‑nitrogen‑oxide emission, easy installation, vacuum anti‑corrosion structure, premium Incoloy 800 heating tubes, multi‑safety protection and fault‑alarm intelligent control. |
| Item/Model | Rated heat supply‑10⁴kcal/h | Rated heat supply‑MW | Heat exchanger operating pressure(MPa) | Power supply(V/Hz) | Current(A) | Electric power(kW) | Thermal efficiency(%) | Shipping net weight(T) | Operating weight (approx.)(T) | Overall dimensions‑L(mm) | Overall dimensions‑W(mm) | Overall dimensions‑H(mm) |
| Z‑WDR 0.35 | 30 | 0.35 | 1.0 / 1.6 / 2.0 | 380/50 | 532 | 360 | 98~99 | 1.8 | 3 | 2000 | 1686 | 2180 |
| Z‑WDR 0.7 | 60 | 0.7 | 1.0 / 1.6 / 2.0 | 380/50 | 1064 | 720 | 98~99 | 2.36 | 3.94 | 2300 | 1786 | 2407 |
| Z‑WDR 1.05 | 90 | 1.05 | 1.0 / 1.6 / 2.0 | 380/50 | 1520 | 1080 | 98~99 | 2.63 | 4.43 | 2400 | 1886 | 2625 |
| Z‑WDR 1.4 | 120 | 1.4 | 1.0 / 1.6 / 2.0 | 380/50 | 2127 | 1440 | 98~99 | 3.55 | 5.57 | 2700 | 2006 | 2766 |
| Z‑WDR 2.1 | 180 | 2.1 | 1.0 / 1.6 / 2.0 | 380/50 | 3192 | 2160 | 98~99 | 3.82 | 6.28 | 3000 | 2058 | 3105 |
| Z‑WDR 2.8 | 240 | 2.8 | 1.0 / 1.6 / 2.0 | 380/50 | 4256 | 2880 | 98~99 | 4.27 | 7.17 | 3300 | 2288 | 3258 |
Notes: * The above parameters are for reference only, subject to actual product specifications.
R&D Center
Fully Automatic Welding
Fully Automatic Tube
Steel Plate Rolling
Tube Bending
CNC Cutting
Large Vertical Lathe
Quenching Treatment
X-ray Flaw Detection
SAPPI
GAZPROM
ADNOC
COCACOLA
CDPC
SINOPEC
CNPC
CHN ENERGY
BYD
CP FOOD
Factory Direct Supply
XHJ Boiler specializes in the R&D, production and sales of boilers, pressure vessels, heat exchange equipment and other related products. Supply customers with one-stop boiler and pressure vessel solutions and have won extensive recognition and positive reviews globally.
XHJ BOILER recommends Electric Vacuum Hot Water Boiler with Low-Pressure Safe Heating to help you understand product manufacturing process, equipment features, and other details. Please visit www.xhjboiler.com and view related application cases, blog updates, and all products.
