| Rated Steam: | 0.5 - 6 ton/h |
| Electric Power: | 360 - 4500 KW |
| Design Pressure: | ≤ 1.6 Mpa |
| Thermal Efficiency: | 98 - 99.5% |
| Rated Steam Temperature: | 184/194/204 ℃ |

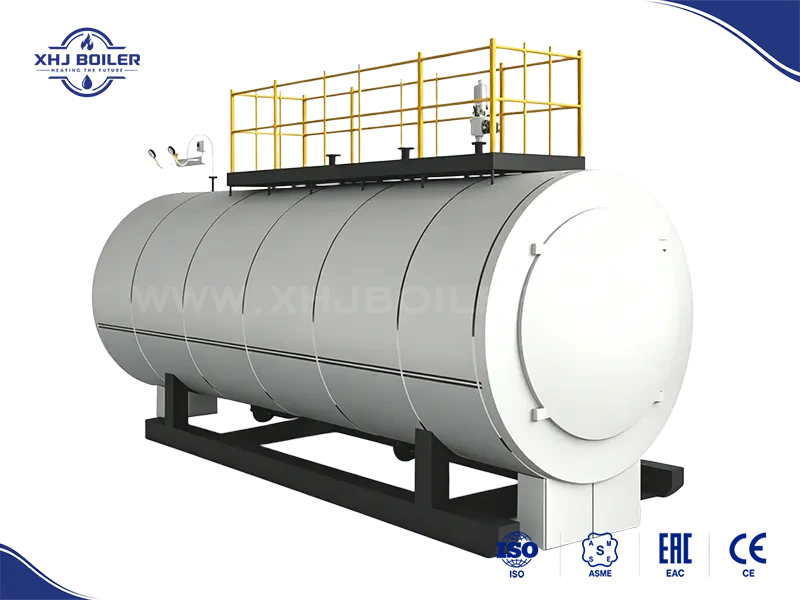

| Structure Type: | Horizontal and Vertical, high‑quality Incoloy 800 nickel‑based alloy heating tubes and factory pre‑assembled so easy installation. |
| Application Industries: | Widely used for production process steam in food, pharmaceutical, textile, chemical, hospital and packaging industries. |
| Item / Model | Rated evaporation capacity(t/h) | Rated pressure(MPa) | Electric power(kW) | Rated steam temperature(℃) | Effective water volume(m³) | Thermal efficiency(%) | Power supply(V/Hz) | Current(A) | Steam outlet(mm) | Water inlet(mm) | Discharge outlet(mm) | Overall dimensions‑L(mm) | Overall dimensions‑W(mm) | Overall dimensions‑H(mm) | Weight(T) |
| WDR0.5‑1.0 | 0.5 | 1.0 | 360 | 184 | 0.8 | 98~99.5% | 380/660/50 | 547 | DN50 | DN25 | DN40 | 2175 | 996 | 1322 | 0.7 |
| WDR1‑1.0 | 1 | 1.0 | 720 | 184 | 1.91 | 98~99.5% | 380/660/50 | 1093 | DN65 | DN25 | DN40 | 2630 | 1366 | 1840 | 1.4 |
| WDR1‑1.25 | 1 | 1.25 | 780 | 194 | 2.7 | 98~99.5% | 380/660/50 | 1080 | DN65 | DN25 | DN50 | 3200 | 1954 | 1908 | 2.0 |
| WDR1‑1.6 | 1 | 1.6 | 780 | 204 | 2.7 | 98~99.5% | 380/660/50 | 1080 | DN65 | DN25 | DN50 | 3200 | 1560 | 1900 | 2.2 |
| WDR2‑1.25 | 2 | 1.25 | 1440 | 194 | 3.5 | 98~99.5% | 380/660/50 | 2188 | DN80 | DN25 | DN50 | 3108 | 1781 | 2270 | 2.6 |
| WDR2‑1.25 | 2 | 1.25 | 1560 | 194 | 4.1 | 98~99.5% | 380/660/50 | 2370 | DN80 | DN25 | DN50 | 3500 | 1740 | 2261 | 3.1 |
| WDR4‑1.25 | 4 | 1.25 | 3000 | 194 | 8 | 98~99.5% | 380/660/50 | 4376 | DN100 | DN40 | DN50 | 3940 | 2530 | 2536 | 5.3 |
| WDR6‑1.25 | 6 | 1.25 | 4500 | 194 | 10.4 | 98~99.5% | 380/660/50 | 6837 | DN125 | DN50 | DN50 | 4708 | 2350 | 2404 | 6.6 |
Notes: * The above parameters are for reference only, subject to actual product specifications.
